50mm f/1.0 Manual Focus Lenses for LWIR Thermal Imaging

Code: 303-025

联系我们

Optical Parameters:

Focal Length 50mm F Number(#) 1.0
Wavelength Range 8~12 micro FOV 12.3°x9.3°
Focus Range ∞~3m Coating DLC and AR
Average Transmission 80% Working Temperature -40℃ ~ +60℃
MTF at Axis >0.55@20lp/mm MTF at Maximum FOV >0.45@20lp/mm



Mechanical Specifications:

Mechanical Connection M45x1 Focus Mechanism Manual
Flange Back Distance 20mm

It is a manual focusing lens module, with a 50mm focal length, an f-number of 1.0, and compact dimensions.

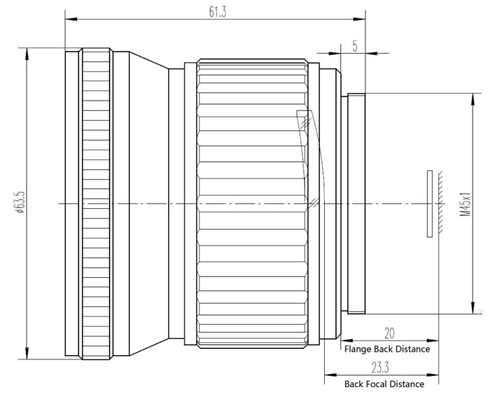

Drawing:

50mm f/1.0 Manual Focus Lenses for LWIR Thermal Imaging

50.0mm
L50F1.0-man
1.0
Manual
Enquire
5-6 weeks
