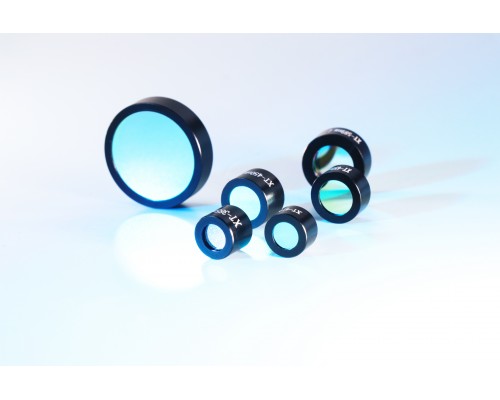

1064nm CWL, 10mm Diameter, 10nm FWHM, OD 4 Narrow Bandpass Filter

Code: 414-027

联系我们

Specifications:

Mounter Diameter	10.0(+0.0/-0.1)mm	Aperture Diameter	6.0mm
Central Wavelength	1064nm+/-2nm	Full Width-Half Max (FWHM)	10.0+/-2nm
Minimum Transmission	>80%	Optical Density (OD)	≧4.0
Block Wavelength Range	200 ~1200nm	Surface Quality	80/50 S/D
Coating Type	Hard Coating	Substrate Materials	Colored Glass + BK7

1064nm

10mm

6mm

Inquire

Inquire

10nm
